About product
Powerful device with USB

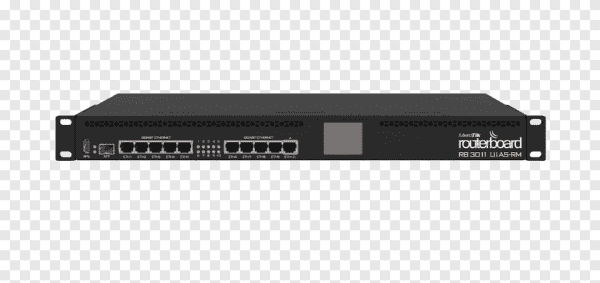

RB3011 is a new multi-port device that first uses the ARM architecture processor, providing higher performance than ever before. RB3011 has ten Gigabit ports divided into two groups of switches, SFPslot and for the first time a full-size USB 3.0 Superspeed port, for storage or external 3G / 4G modem.
Universal installation
The device is equipped with a 1U enclosure for rack mounting, an LCD touch screen, a serial console port and PoE output on the last Ethernet port.
Specification
| Features / filters | |
| Number of LAN ports | 10x [10/100/1000M (RJ45)] , 1x SFP (1,25G), |
| Additional connectors / interfaces | 1x USB |
| Cabling technology | 10/100/1000Base-T(X) |
| CPU frequency | 1,4 GHz |
| Depth | 92 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 10 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet WAN | Yes |
| Height | 44 |
| Internal memory | 1024 |
| Management | By web browser, CLI – Command Line Interface, |
| Number of CPU cores | 2 |
| Operating temperature (T-T) | -30 – 70 |
| Power consumption (typical) | 10 |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| RAM memory | 1GB |
| Type of case | Metal, Rack (1U), |
| Type of device power supply | Passive PoE, Power supply, |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Width | 443 |
| Basic technical parameters | |
| CPU frequency | 1.4 GHz |
| Number of processor cores | 2 |
| Memory RAM | 1 GB |
| Number of ports 10/100/1000 Mb/s | 10 |
| System model | QCA8337-AL3C-R |
| Power Jack | 1 |
| PoE input | Yes. (passive PoE) |
| PoE output | Yes (port 10) |
| Supported input voltage | 10 V – 30 V |
| Voltage monitor | Yes |
| Temperature monitor | PCB Yes |
| Dimensions | 443×92×44 mm |
| Licence level | 5 |
| Operating system | CPU RouterOS IPQ-8064 |
| Maximum energy consumption | 10 W |
| SFP port | 1 |
| USB port | USB 3.0 type A |
| Number of USB ports | 1 |
| Serial port | RJ45 |
