Product details

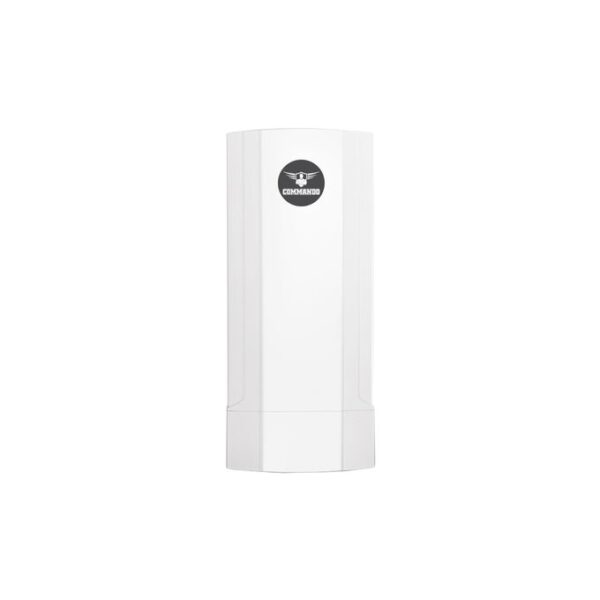

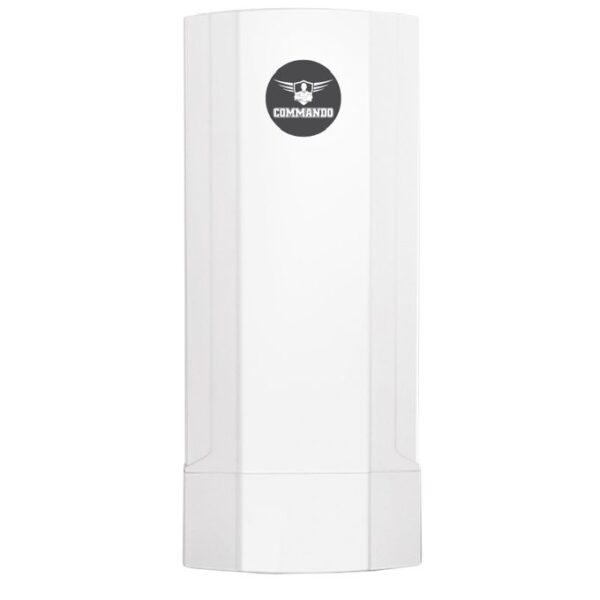

AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point
Multiple Operational Modes like Gateway, Repeater, WISP, AP. All COMMANDO AirONE series Outdoor APO default mode is AP mode.
• Supports Multi SSID up to 8 with inbuilt WIFI channel analysis.
• Supports IEEE 802.11ac/b/g/n, 2.4GHz+5.8GHz Wave 2.0 Technology, MIMO High Gain Omni 5dBi Internal Antenna with RF input Power up to 500mW.
• Support wireless RF power adjustable as per user movements from APO.
• Wireless clients up to 128 max, with concurrent end users up to 100.
• Support tag VLAN and VLAN management.
• Supports intelligent load balance based on users.
• Support seamless roaming and low-rate terminal access.
• Dual purposes WAN or IEEE 802.3at 48V PoE+ supporting 1x 10/100/100Mbps and separate LAN ports 1x 10/100/1000Mbps.
• Supports Wi-Fi client distance around 120 meters radius depending on surrounding conditions.
• Dual input for power either IEEE 802.3at 48V POE+ or 12V, 1.5A DC power inputs.
• Support Open or encryption like WPA/WPA2PSK_TKIPAES
• Plug and Play design with self-adaption with Zero Touch Provisioning.
• Compact IP65 casing, silent design perfect for noise sensitive environments.
• Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.
• Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios
• Comes with one-year default warranty – optionally extendable up to 3 years.
SOFTWARE HIGHLIGHTS
Home
Device Information like CPU Usage, Memory Usage, LAN Information like IP Mode Get IP From AC/Gateway/Static, Status with 2G/5G Wi-Fi Clients Status with information like SSID, Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ Fat AP Mode with Uptime, Flow in bps for Downstream and Upstream.
Wizard
Gateway Mode, Repeater Mode, WISP Mode, AP Mode (Default Selection).
Wi-Fi
2G/5G Wi-Fi Status ON/OFF, SSID, Hide your SSID, Bandwidth, Channel, Encryption Open/Encryption with WPA/WPA2PSK_TKIPAES, MAC ACL with Add, Delete, Apply with disable/Allow/ Prohibit option, Wi-Fi Timer Off/ON with Time Frame, Advanced setting like Country Region, 2G/5G, Multicast Fast, Maximum client for APO, WLAN Partition, Short GI, Coverage Threshold(-95dBm~-65dBm), TX Power, DFS.
Network
LAN Settings with DHCP server option, Static DHCP, VLAN Settings & Cloud Server Settings.
Security
URL Filter, IP Filter, MAC Filter & DMZ Settings.
Manage
Configure, Reboot, Modify Password, Upgrade, Time, Log, Flow Control, IP Group, Time Group & DDNS Settings.
