Techfine VS2012P Solar Hybrid Inverter – Data Sheet

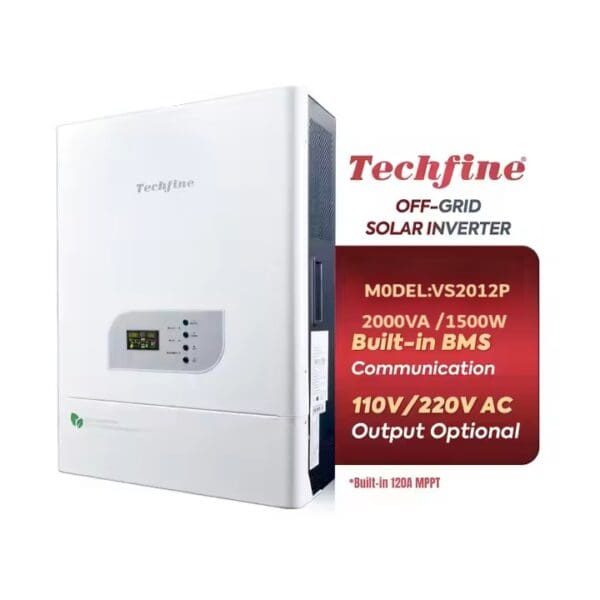

Product Name: Techfine and Accept OEM 200VA /1500W Solar Hybrid Inverter Model: VS2012P

General Description

The Techfine VS2012P is a solar hybrid inverter designed to provide a reliable power conversion solution for residential, commercial, and industrial applications. With its 200VA / 1500W capacity, this inverter efficiently converts 12V DC to 220V AC, ensuring uninterrupted power supply for various electronic devices.

Key Features

• Pure Sine Wave Output – Ensures compatibility with sensitive electronics and provides clean, stable power.
• Solar Hybrid System – Supports both solar and AC mains charging, optimizing energy efficiency.
• High Efficiency Conversion – Designed to minimize energy loss and enhance battery life.
• Smart Battery Charger – Ensures optimal battery performance with intelligent charging mechanisms.
• Overload & Short Circuit Protection – Built-in safety features to prevent damage to the inverter and connected devices.
• Automatic Restart – Resumes operation seamlessly after power interruptions.
• Compact & Durable Design – Designed for easy installation and long-term reliability.

Technical Specifications

• Rated Capacity: 200VA / 1500W
• Input Voltage: 12V DC
• Output Voltage: 220V AC (Nominal)
• Output Frequency: 50/60Hz (Auto-sensing)
• Maximum DC Input Current: 15.63A
• Waveform: Pure Sine Wave
• Battery Type: Lead-Acid / Lithium-Ion (External)
• Charging Voltage: 13.75V DC
• Maximum Solar Charging Current: 60A
• Solar Input Voltage Range: 15V – 30V DC
• Transfer Time: ≤20ms (Inverter Mode), ≤10ms (UPS Mode)
• Cooling System: Smart Cooling Fan
• Protection Mechanisms: Overload, Over-temperature, Short Circuit, Battery Low Voltage

Applications

• Home Power Backup – Ensures uninterrupted power supply for home appliances.
• Small Offices & Shops – Provides reliable power for business operations.
• Solar Energy Systems – Ideal for off-grid and hybrid solar installations.
• Industrial Equipment – Supports essential machinery and electronic devices.

Physical & Environmental Specifications

• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 55°C
• Humidity: 5% – 95% (Non-condensing)
• Dimensions: [Provide exact dimensions]
• Weight: [Provide weight]

Certifications & Compliance

• CE Certified
• ISO 9001:2015 Compliant
• RoHS Compliant
